2-Piece Ball Valve Let-Lok
Quick Code: BB-680238

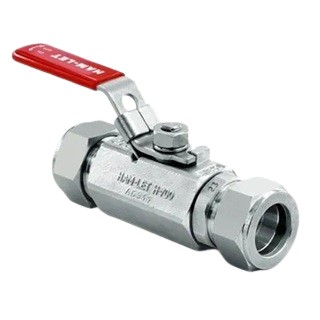

3/8inch HAM-LET 2-Piece Instrumentation Ball Valve Let-Lok
Also Try
1-Piece Ball Valve NPT
3-Piece Ball Valve Let-Lok 3000psi
Buy Now
Qty:
Product Specification
Connection
Female x Female
Handle Type
Flat Steel with Sleeve
OD
3/8inch
Product Material
Stainless Steel
Valve Pattern
Straight
Reference
H-700-SS-L-3/8-T-LD
Quick Order Code
BB-680238
Product Description
The H-700 Series is a moderate-pressure ball valve for general service. These valves are compact in size and structure. They have relatively large ports for high flow, tight shutoff, long-life service, and low operating torque. The H-700 Series can be used for bi-directional flow in fully open or fully closed position only. The series is rated to a maximum 2000 psi (135 bar) and performs on/off service.
Cleaning and Packing:
H-700 ball valve is treated with HAM-LET Passivation Cleaning & Packaging (Procedure 8075). HAM-LET H-700 ball valves With face seal end connections are treated with Oxygen Cleaning and Packaging (Procedure 8055).
Maximum Working Temperature: +204 deg C
Maximum Working Pressure: 135 bar
2-piece general duty ball valves with:
- Blow-out proof stem
- Stainless steel construction
- Locking handle in on and off positions
- Compliance with OSHA LOTO Standard 29 CFR Part 1910.147- Control of Hazardous Energy
- Flow coefficient (Cv) 1.25 to 17.35
Lubricant:
Silicon-based grease for oxygen applications, according to HAM-LET procedure 8055.
Testing
The H-700 Series ball valve designs have been tested for proof and burst. Every H-700 ball valve is factory tested with nitrogen at 1000 psi (69 bar).
Maximum allowable leakage across seat is 0.1 std cc/min.
