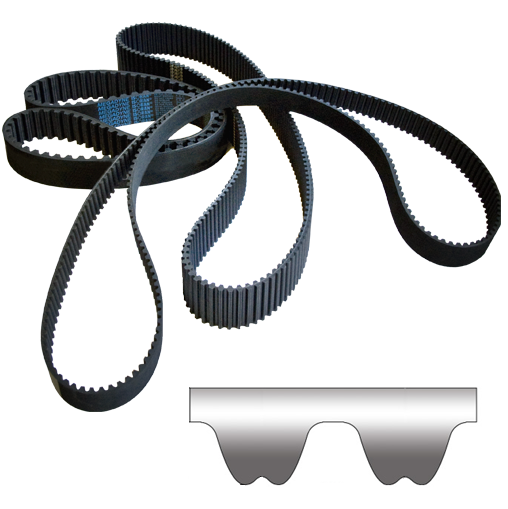

3500-RPP14-100 Megadyne Isoran Metric Timing Belt (3500-14M-100)
Also Try
14M Taperlock Timing Pulley
8M Timing Belts (8mm Pitch)
5M Timing Belts (5mm Pitch)
3M Timing Belts (3mm Pitch)
Buy Now
Qty:
Product Specification
Brand
Megadyne
Number of Teeth
250
Pitch Length
3500mm
Width
100mm
Reference
110430570164 (3500 RPP14 100)
Quick Order Code
BB-397089
Product Description

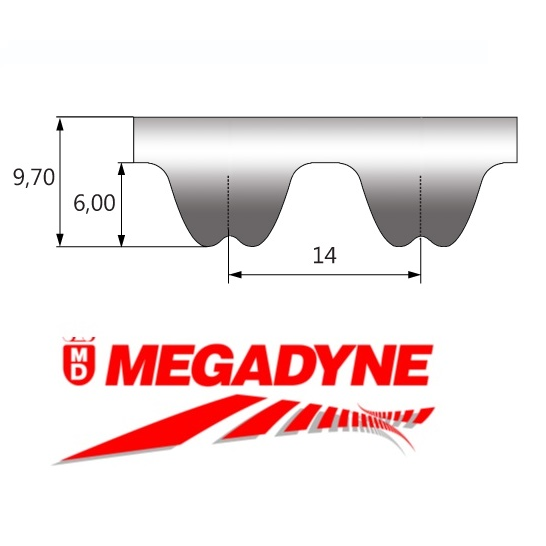

Please note that if the Megadyne brand is not in stock an equivalent quality brand will be sent.Isoran RPP is the classic type of Isoran transmission belt, made in chloroprene rubber and suited for a very wide range of applications. The parabolic profile of Isoran RPP has a progressive angle starting from the root of the tooth, up to the tip. This allows to have a taller tooth with the same pitch length. The groove on top permits a smoother engagement, a better meshing of the tooth with the pulley and less wear of the belts.
Main componentsKey Features
