Bearings
Ball Transfer Units
Light Duty - Push Fit
Quick Code: BB-454630

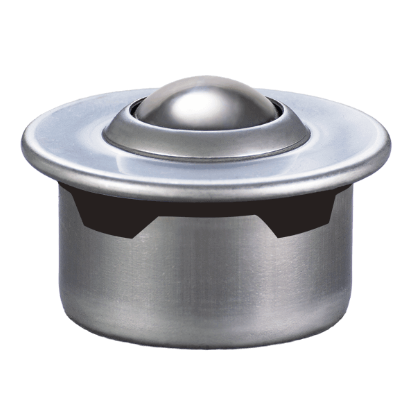

L30A-C Stainless Steel Ball Transfer Unit with C-Clip (Stainless Ball, Zinc Plate Housing)
Also Try
Heavy Duty - Threaded Stud
Light Duty - Saturn Type
Medium Duty - Push Fit
Heavy Duty Ball - Push Fit
Heavy Duty - Flange Mounted
Steel Clevis Joints
Buy Now
Qty:
Product Specification
Quick Order Code
BB-454630
Product Description
A Body outside diameter with clip 46.0-46.5mm
B Working height inc. ball projection with clip 14.4mm
C BALL PROJECTION 6.8mm
D Outside diameter with flange 55mm
E OVERALL HEIGHT 37mm
F Flange thickness 3.6mm
LOAD 280kg
WEIGHT 0.2525kg
BALL ⌀ 30mm
BALL ORIENTATION Ball Up / Horizontal
SPRING LOADED No
